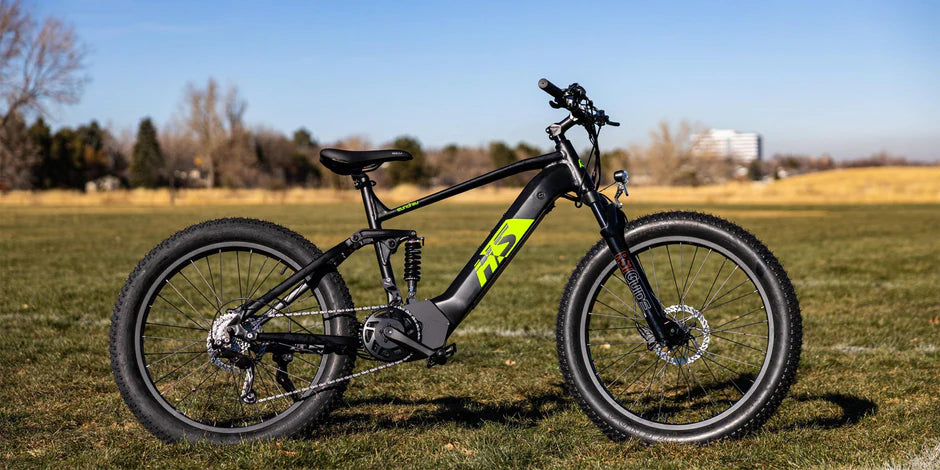

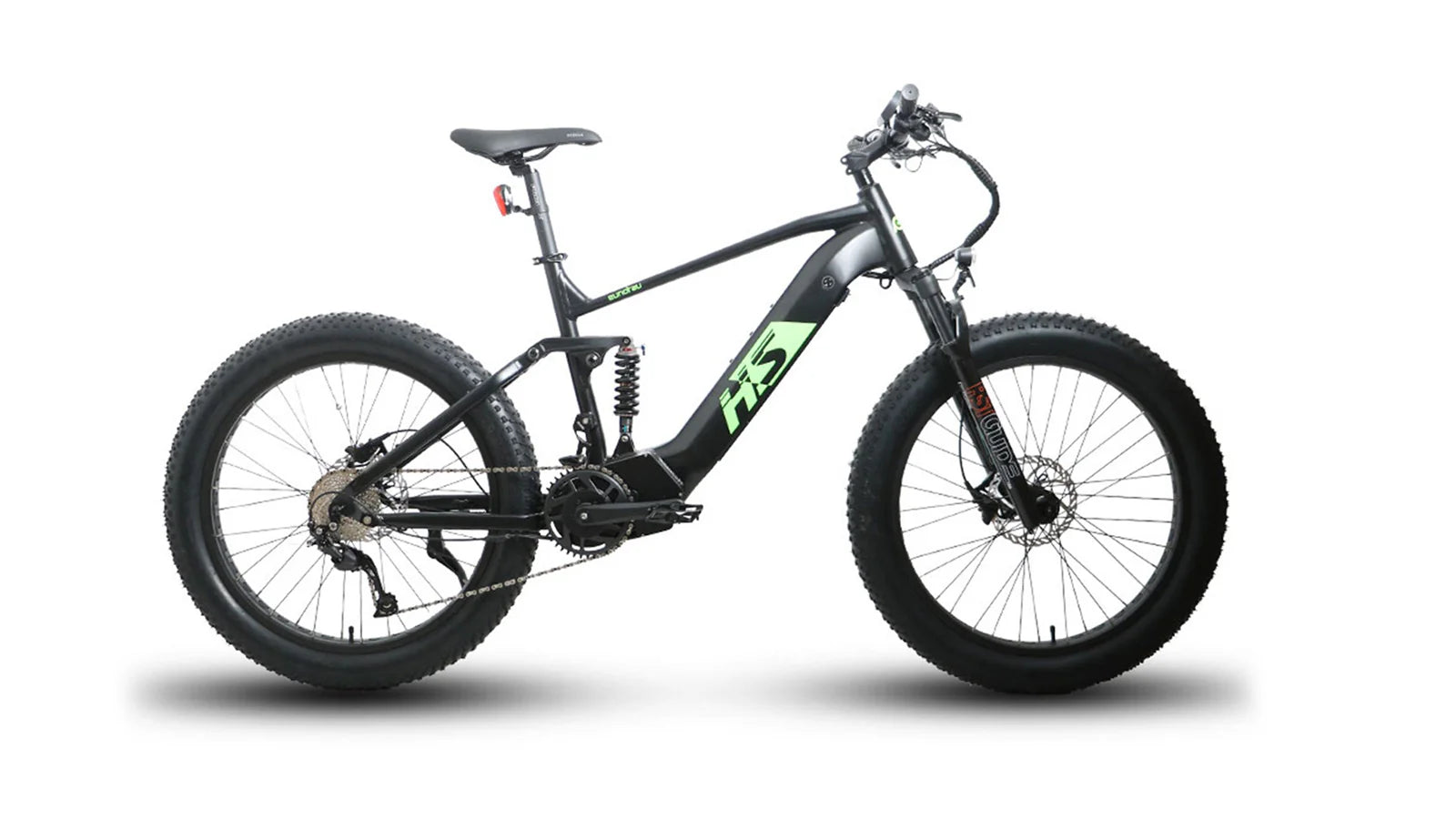

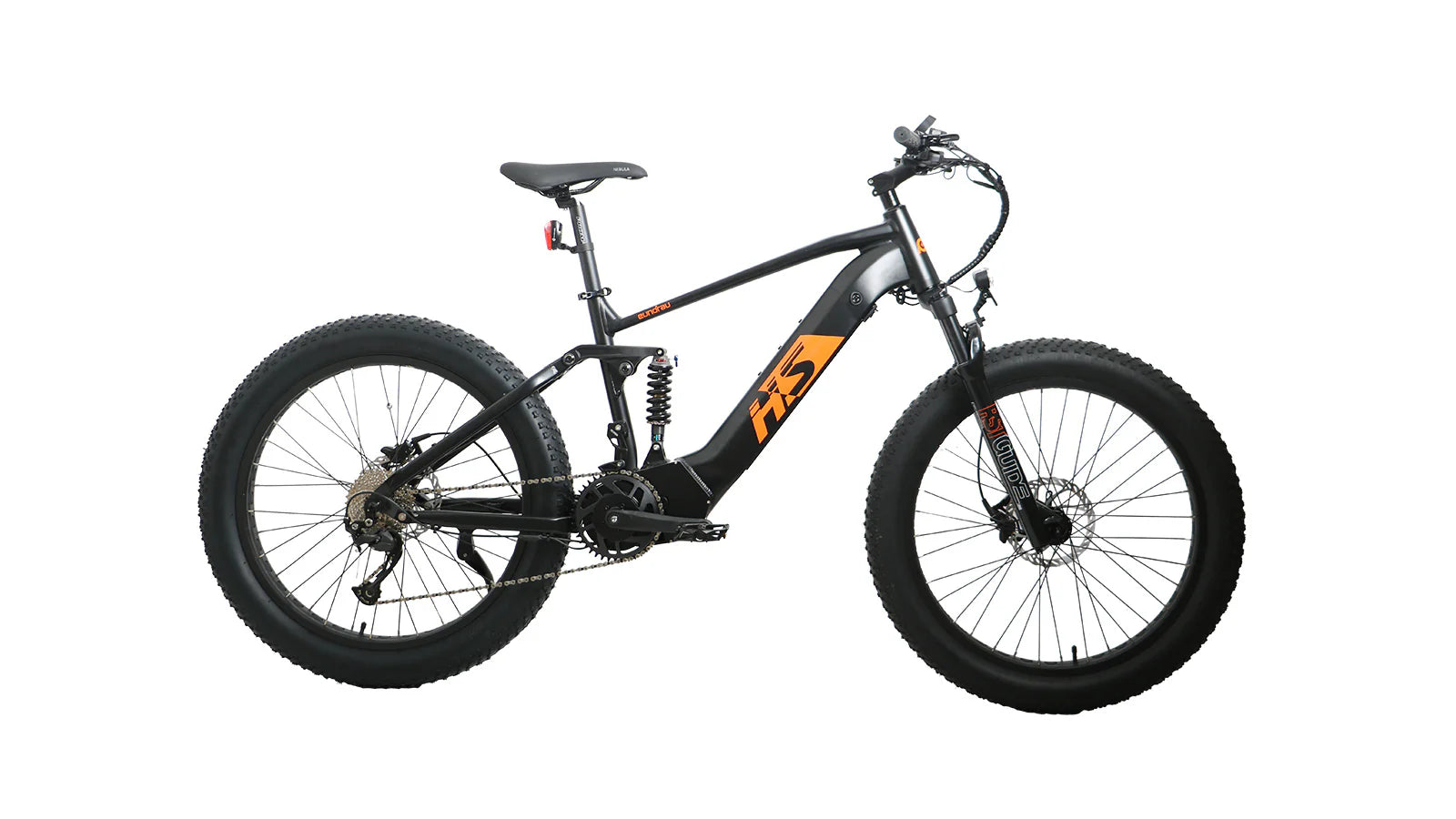

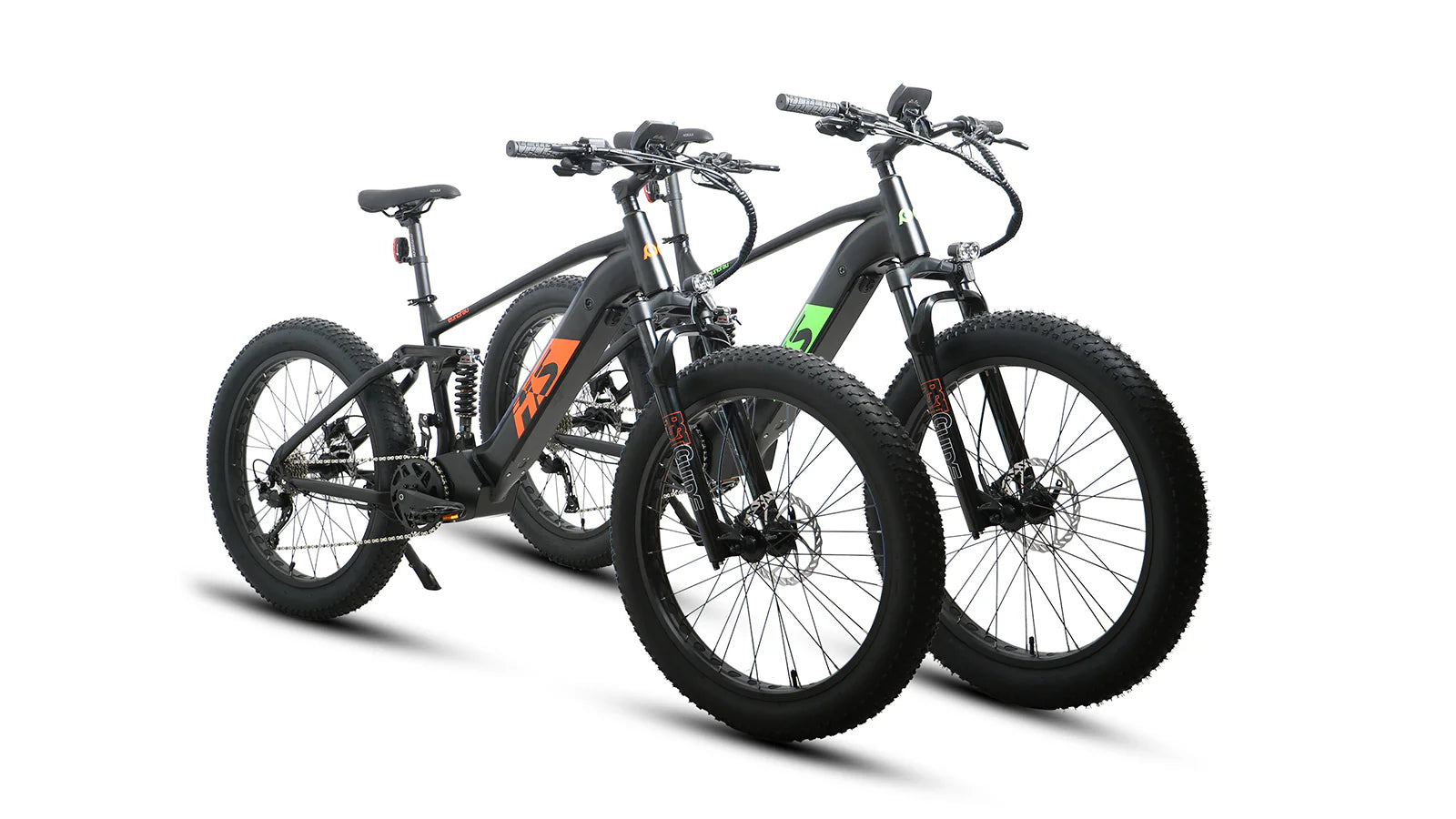

2x Fat-HS

Specification

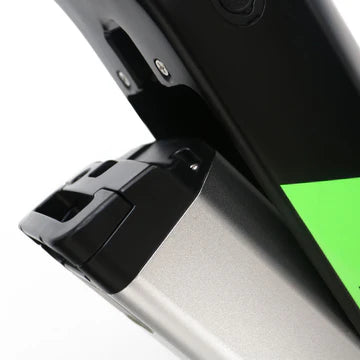

• Battery: 48V15Ah Standard + Optional second battery 48V15Ah)
• Range: 130 km (48V/17Ah SAMSUNG Cells + Second battery 48V15Ah)

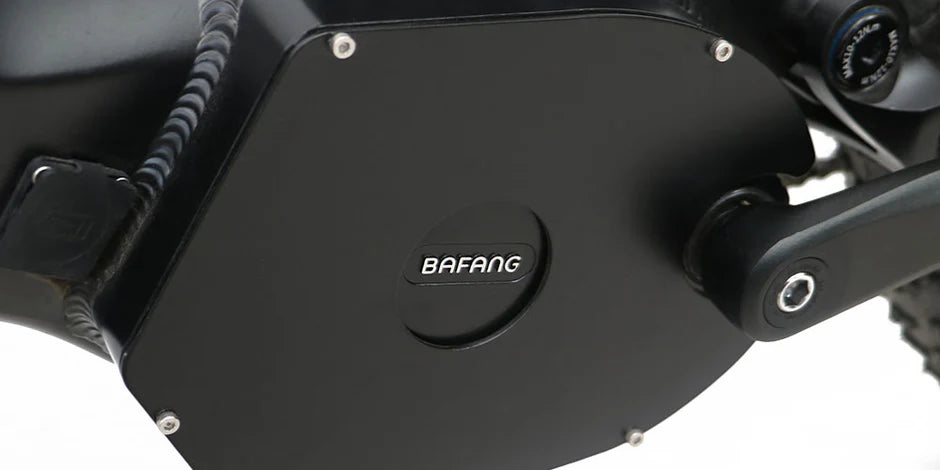

• Motor: 48V1000W Bafang M615 mid motor with 160 N.m torque
• Total Payload Capacity: 136 kg
• Recommended Rider Heights: 159~193 cm
• Maximum Speed: 45 km/h
• Charger: AU standard 2.0 A smart charger
• Controller: 48V

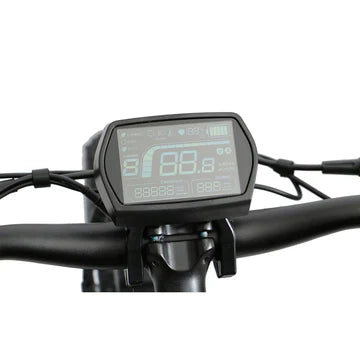

• Display: CDC6 LCD display
• Weight: 35 kg
• Pedal Assist Intelligent: 0~5 level pedal assist
• Box Dimensions: (cm) 172 L x 35 W x 85 H

Components

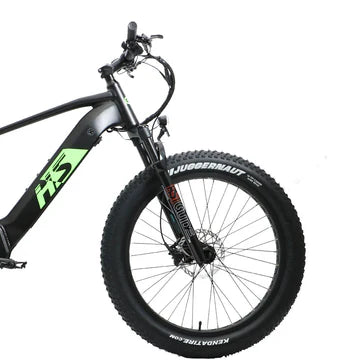

• Tyres: Kenda tyres 26" x 4.0"
• Brake lever: Hydraulic disc brake levers with motor cutoff switch
• Rear Light: Taillight

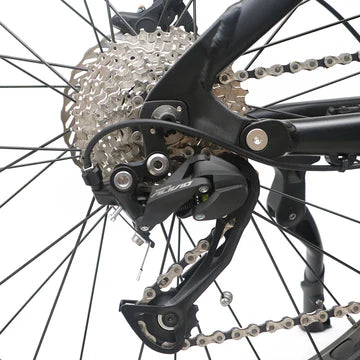

• Shifter: SHIMANO ALTUS/SUNRACE RDM91 - 9 speed gear shift system
• Brake Rotor:EUNORAU design 180MM hydraulic disc brakes
• Throttle: Thumb throttle
• Stem: EUNORAU TDS-D507G-8FOV
• Crank: 170mm forged alloy
• Cassette Shimano 11-34T

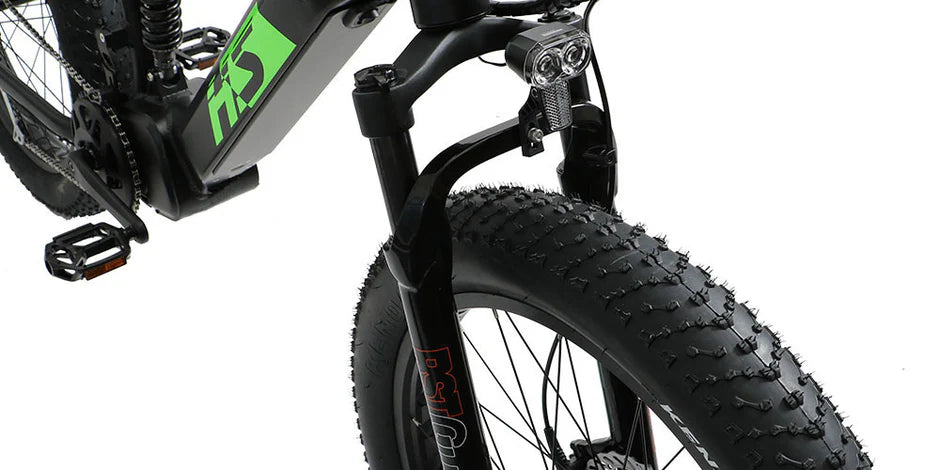

• Fork: RST GUIDE 75mm travel

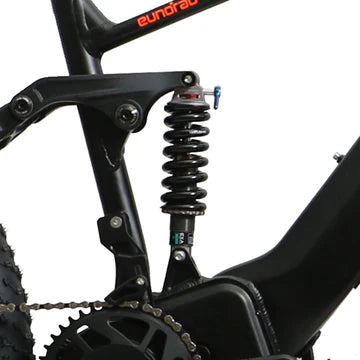

• Shock: KS-388RL,48mm (To avoid any damage, please lock out the rear shock when you install the 17A second battery)
• Pedal: Nylon pedal with reflectors
• Frame: Aluminum alloy 6061 full suspension

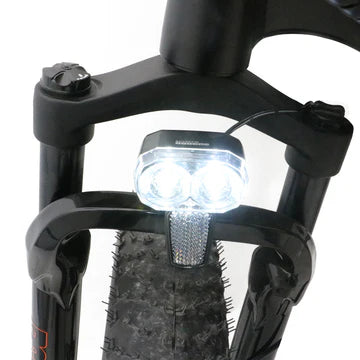

• Front Light: 6-60V LED light
• Saddle: Comfort Saddle, Height to Ground 94-110 cm
• Tool: Included
• Chainring: 42T 7075 CNC chain-wheel crank
• Rims: 26 inch black alloy wheels

*Note:On this e-bike, the left lever operates the front brake and the right lever operates the rear brake.In Australia, the standard setup is usually the reverse.
