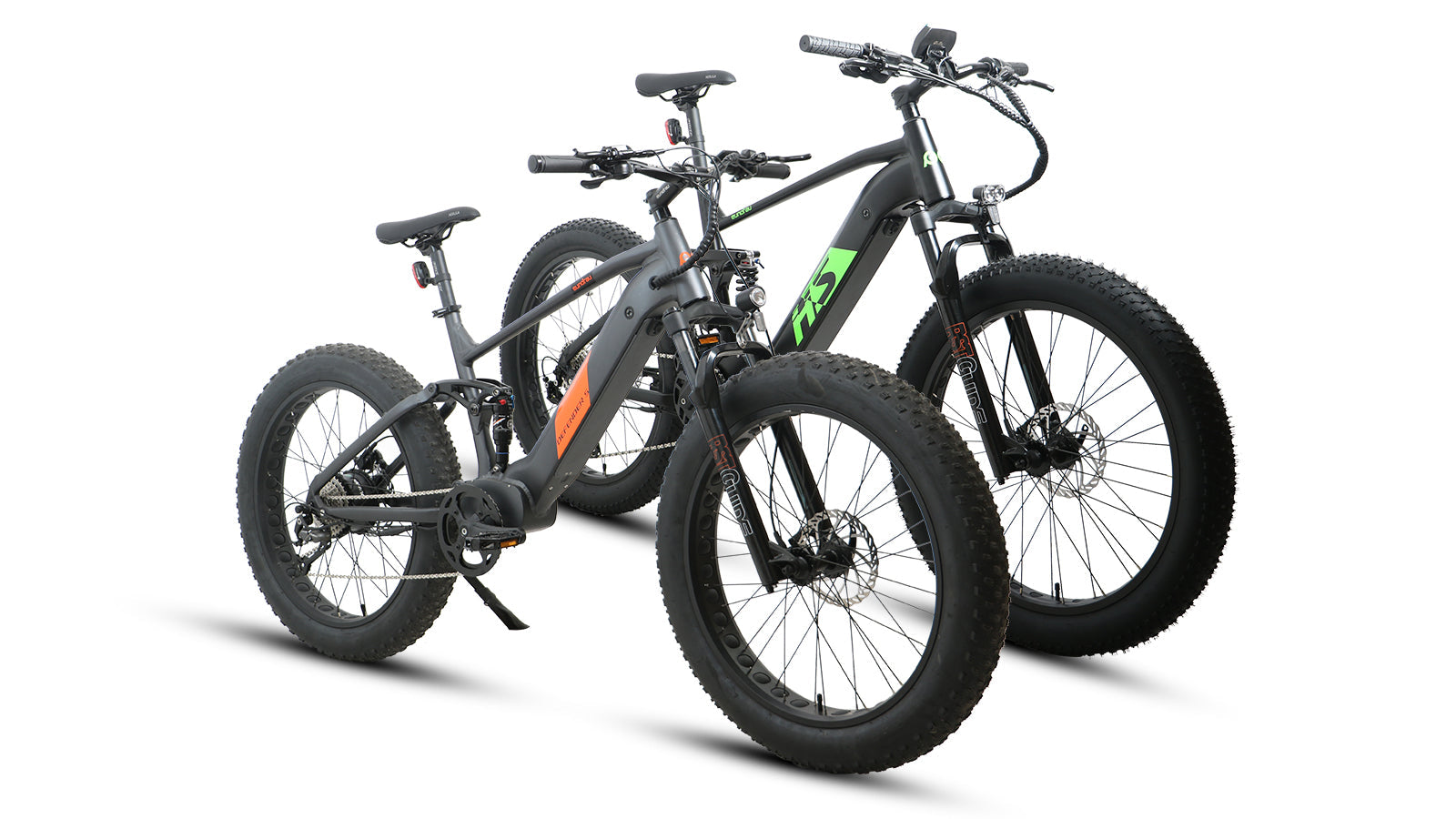

Defender-S & Fat-HS

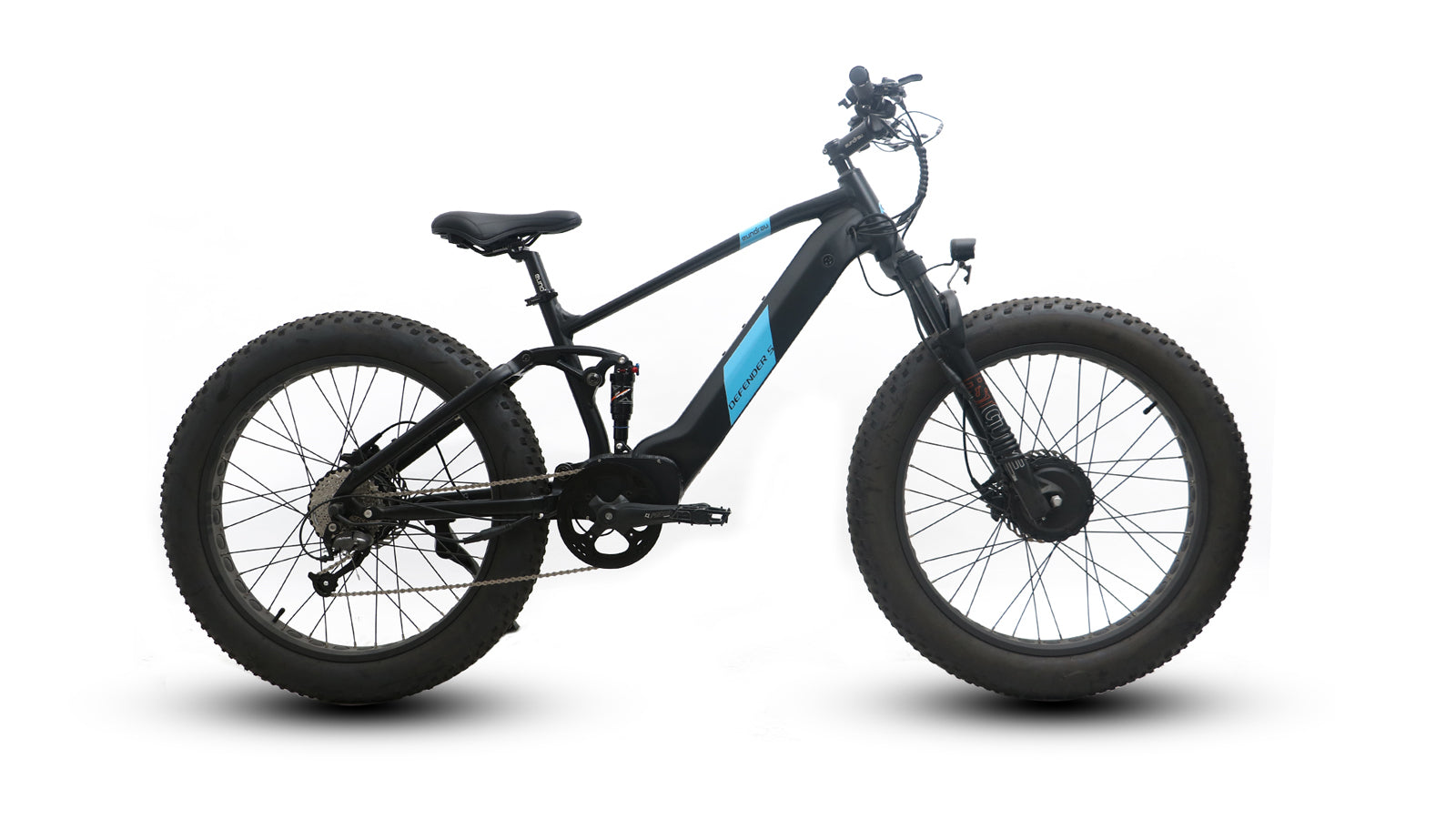

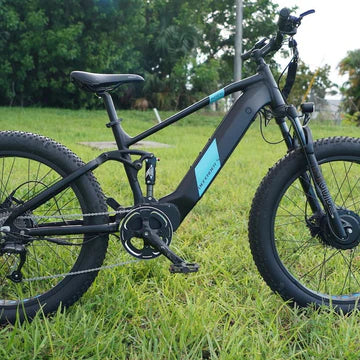

DEFENDER-S Specification

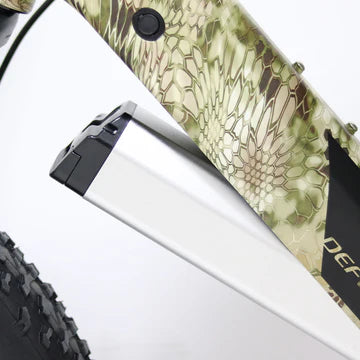

Battery: 48V/15Ah + Optional 15Ah Battery

Range: 130+ km (48V17Ah SAMSUNG Cells + Second battery)

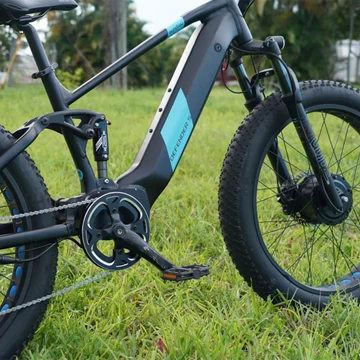

Hub Motor: 48V750W+750W BAFANG motor with 80 N.m+80 N.m torque

Total Payload Capacity: 136 kg

Recommended Rider Heights: 159~193 cm

Maximum Speed: 32 km/h

Charger: AU standard 2.0 A smart charger

Controller: 48V 22A * 2

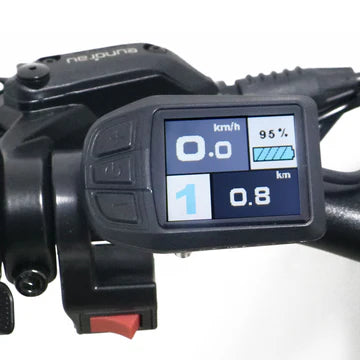

Display: C3 / BC182 LCD Display

Weight: 38 kg

Pedal Assist Intelligent: 0~5 level pedal assist

Box Dimensions: (cm) 170 L x 32.5 W x 85 H

Components

• Tyres: KENDA sport tyres 26" x 4.0"
• Brake Lever: Hydraulic disc brake levers with motor cutoff switch
• Rear Light: Taillight

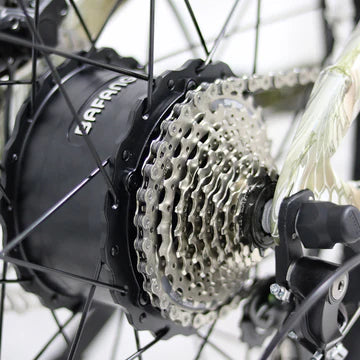

• Shifter: SHIMANO ALIVIO 9 speed gear shift system

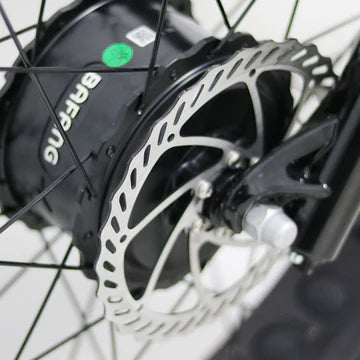

• Brake Rotor:EUNORAU design 180MM hydraulic disc brakes
• Throttle: Thumb throttle
• Stem: EUNORAU TDS-D507G-8FOV
• Crank: 170mm forged alloy
• Cassette: Shimano 11-34T

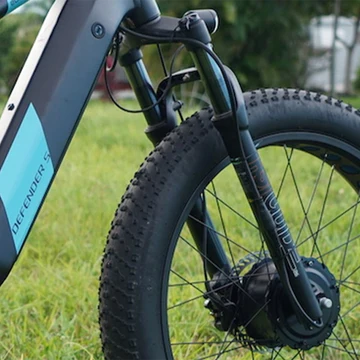

• Fork: RST GUIDE 75mm Travel suspension fork

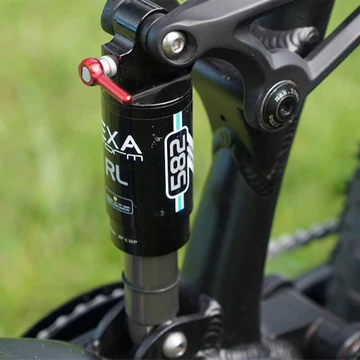

• Shock: EXA KS582，165L
• Saddle: JUSTGK TTZ003 Saddle, Height to Ground 90-105 cm
• Pedal: Nylon pedal with reflectors
• Frame: Aluminum alloy 6061 full suspension

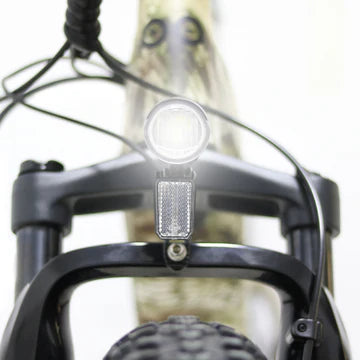

• Front Light: 40 lux LED light
• Tool: Included
• Chainring: 44Tasluminum chain wheel with protection
• Rims: 26 inch black alloy wheels

*NOTE: this ebike is sold with the left brake lever controlling the front brake, and the right brake lever operating the rear brake.

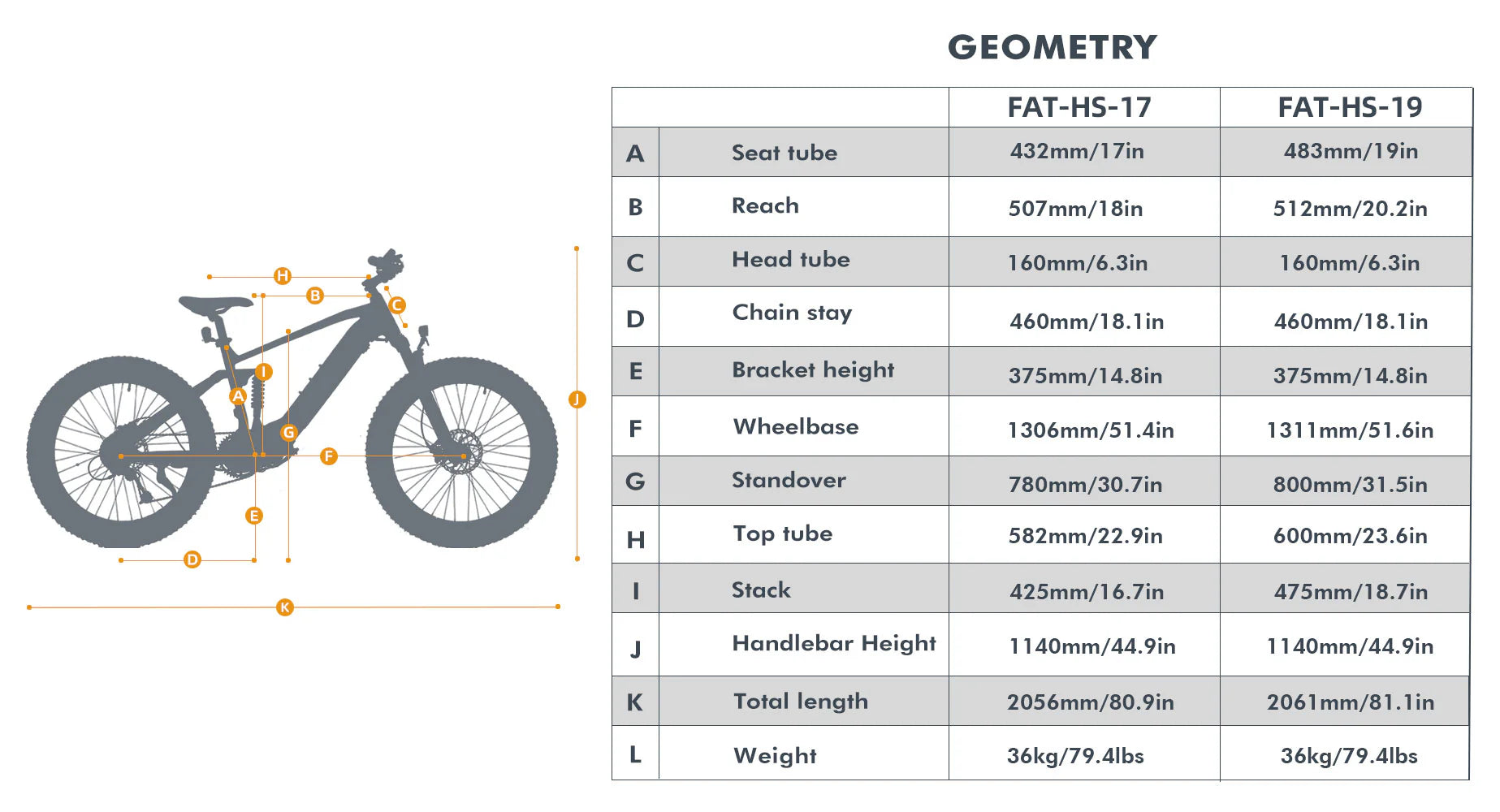

FAT-HS Specification

• Battery: 48V15Ah Standard + Optional second battery 48V15Ah)
• Range: 130 km (48V/17Ah SAMSUNG Cells + Second battery 48V15Ah)
• Motor: 48V1000W Bafang M615 mid motor with 160 N.m torque
• Total Payload Capacity: 136 kg
• Recommended Rider Heights: 159~193 cm
• Maximum Speed: 45 km/h
• Charger: AU standard 2.0 A smart charger
• Controller: 48V
• Display: CDC6 LCD display
• Weight: 35 kg
• Pedal Assist Intelligent: 0~5 level pedal assist
• Box Dimensions: (cm) 172 L x 35 W x 85 H

Components

• Tyres: Kenda tyres 26" x 4.0"
• Brake lever: Hydraulic disc brake levers with motor cutoff switch
• Rear Light: Taillight
• Shifter: SHIMANO ALTUS/SUNRACE RDM91 - 9 speed gear shift system
• Brake Rotor:EUNORAU design 180MM hydraulic disc brakes
• Throttle: Thumb throttle
• Stem: EUNORAU TDS-D507G-8FOV
• Crank: 170mm forged alloy
• Cassette Shimano 11-34T
• Fork: RST GUIDE 75mm travel
• Shock: KS-388RL,48mm (To avoid any damage, please lock out the rear shock when you install the 17A second battery)
• Pedal: Nylon pedal with reflectors
• Frame: Aluminum alloy 6061 full suspension
• Front Light: 6-60V LED light
• Saddle: Comfort Saddle, Height to Ground 94-110 cm
• Tool: Included
• Chainring: 42T 7075 CNC chain-wheel crank
• Rims: 26 inch black alloy wheels

*Note:On this e-bike, the left lever operates the front brake and the right lever operates the rear brake.In Australia, the standard setup is usually the reverse.
