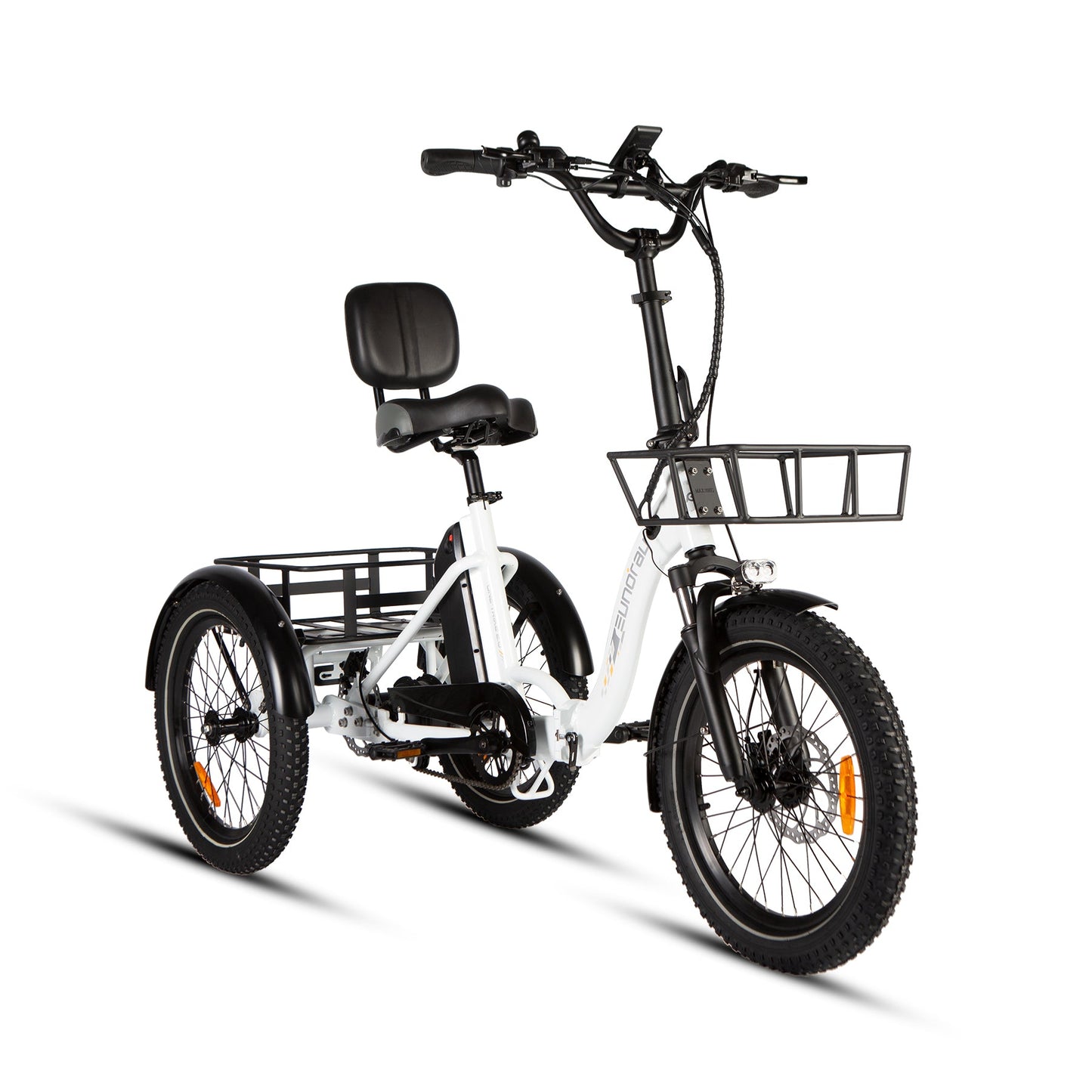

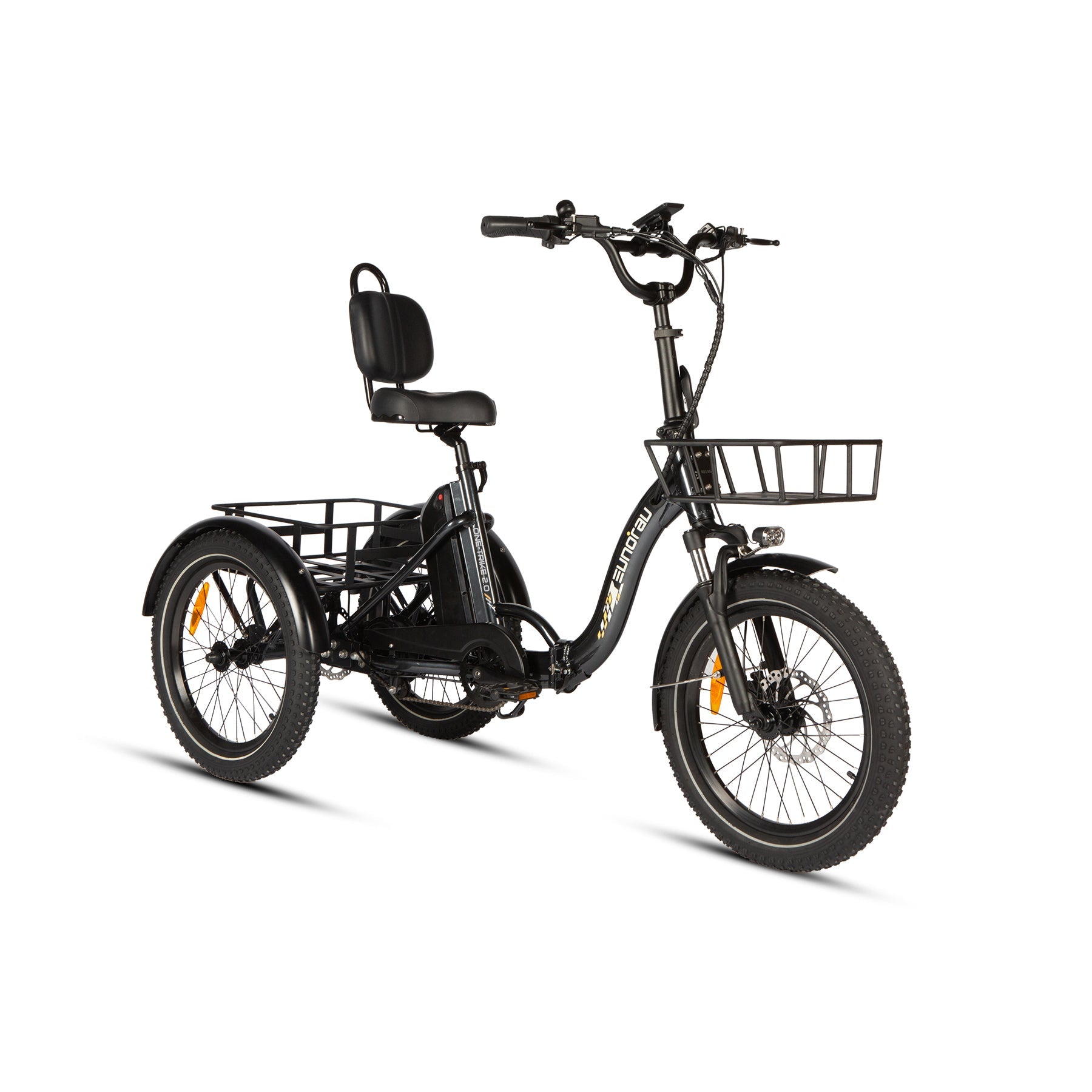

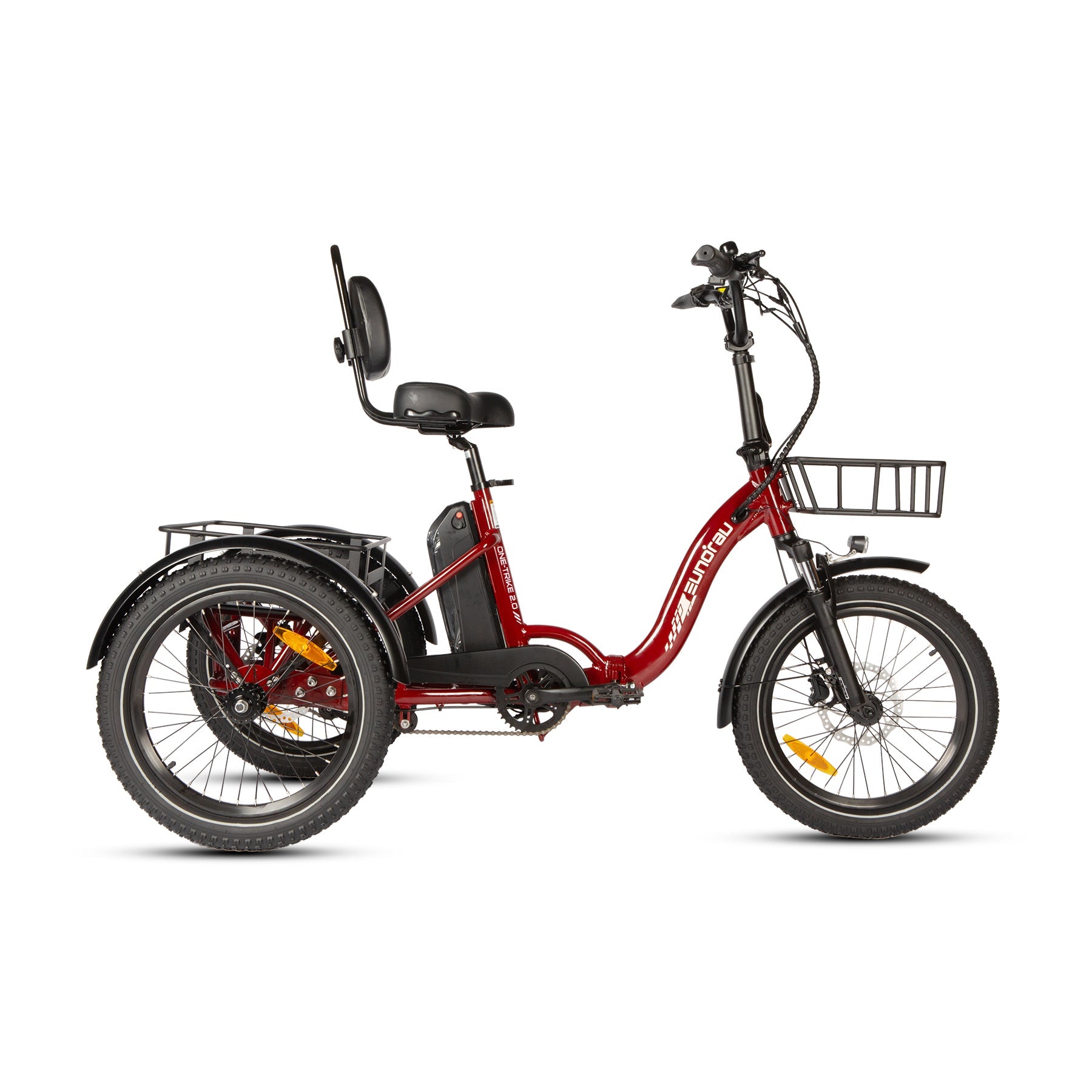

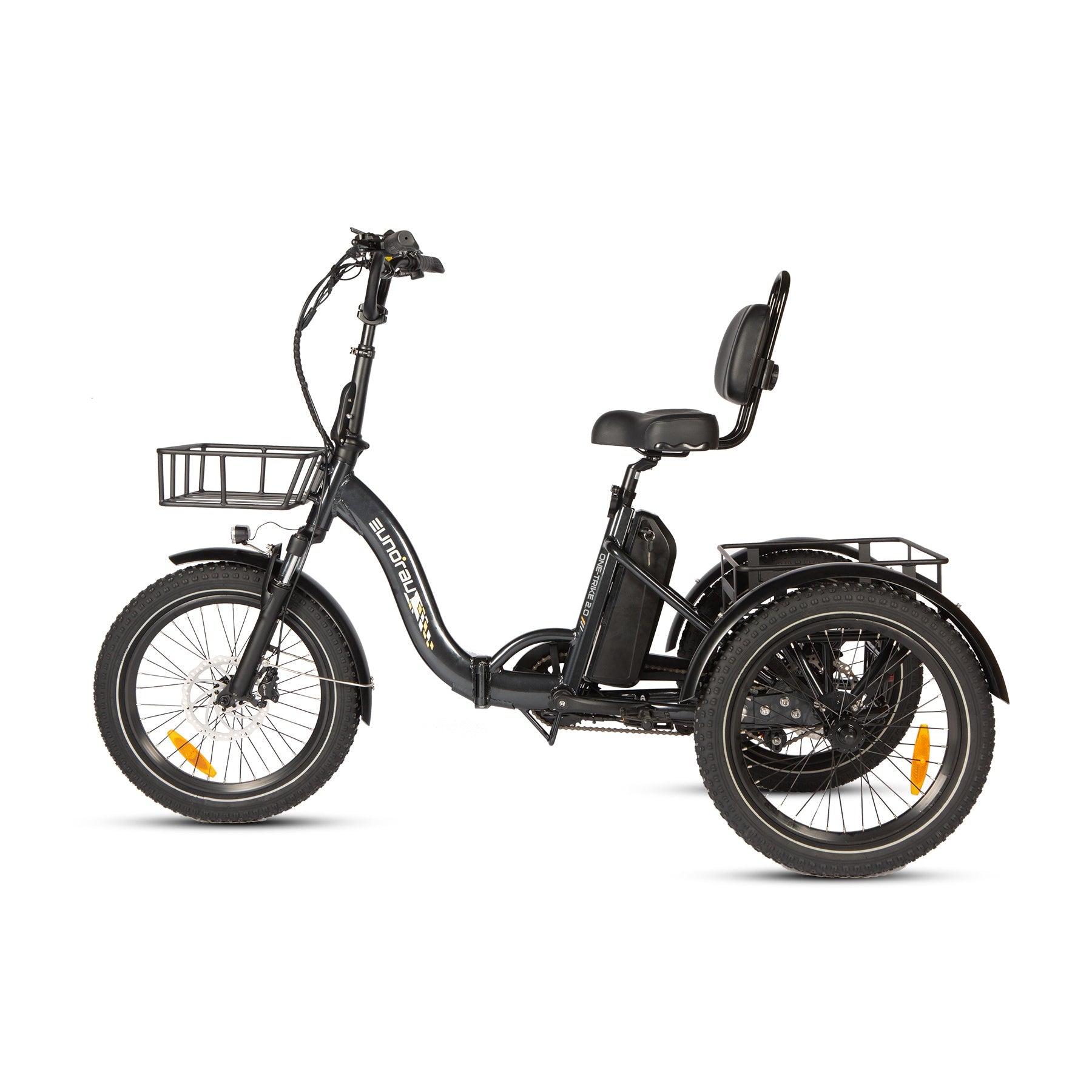

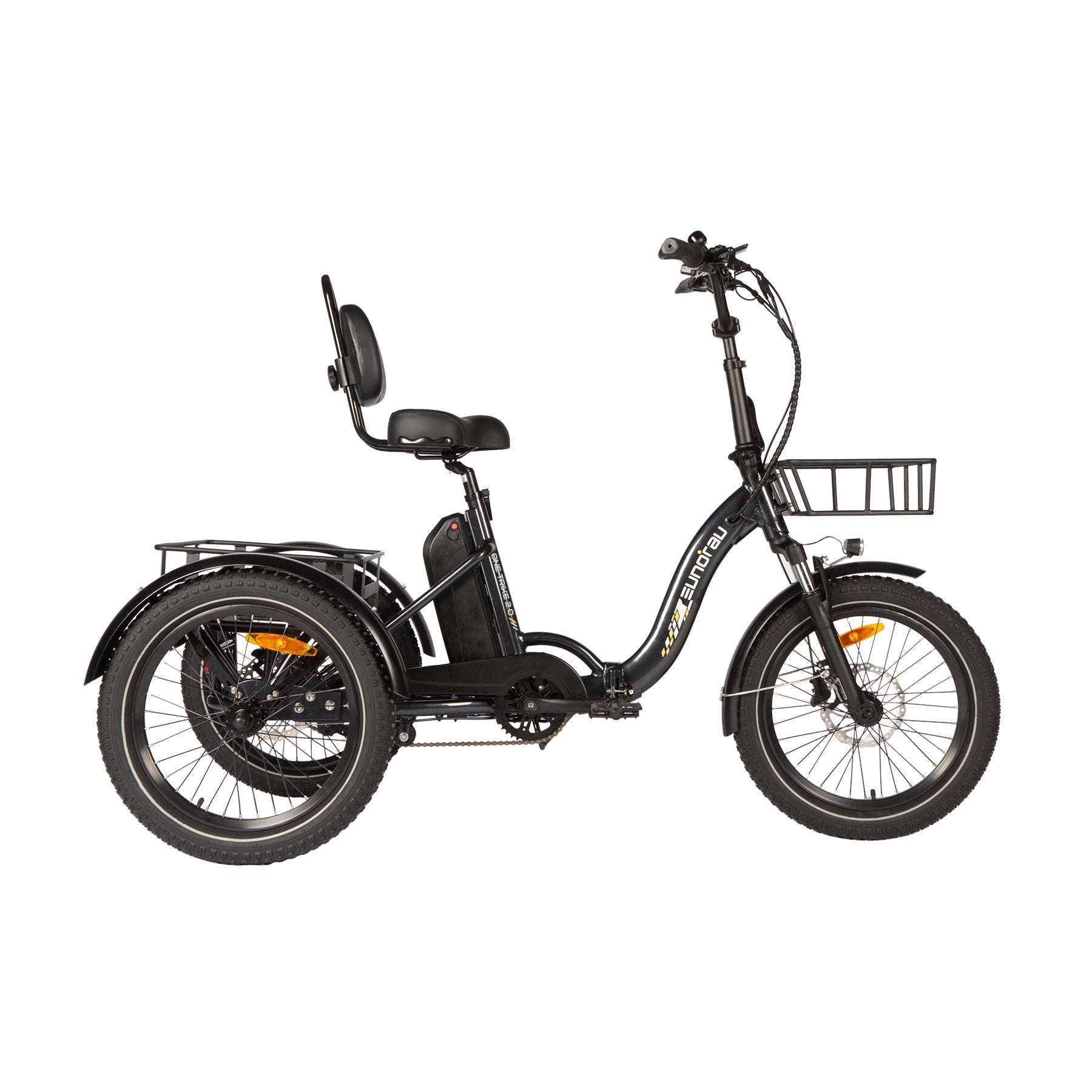

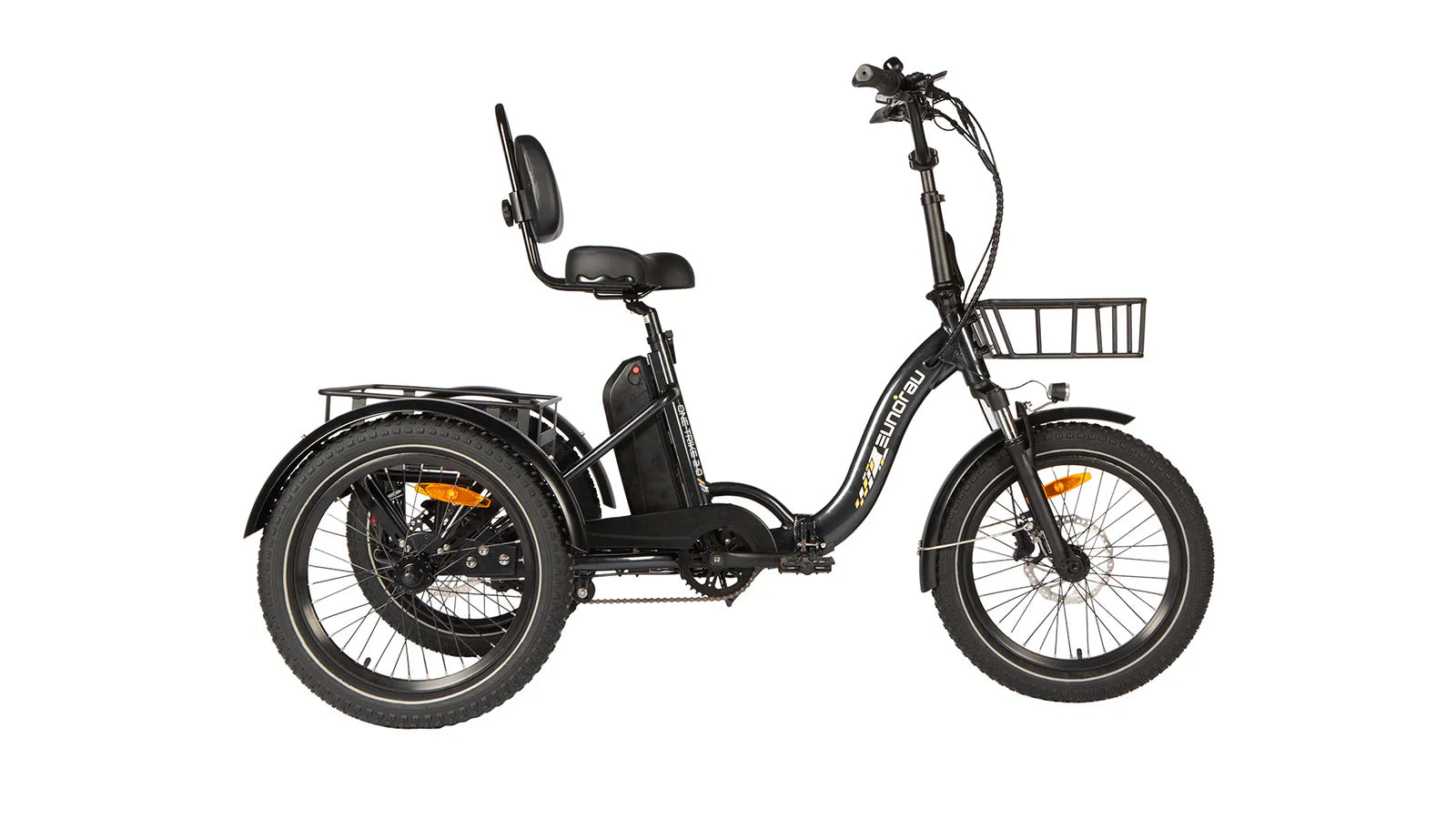

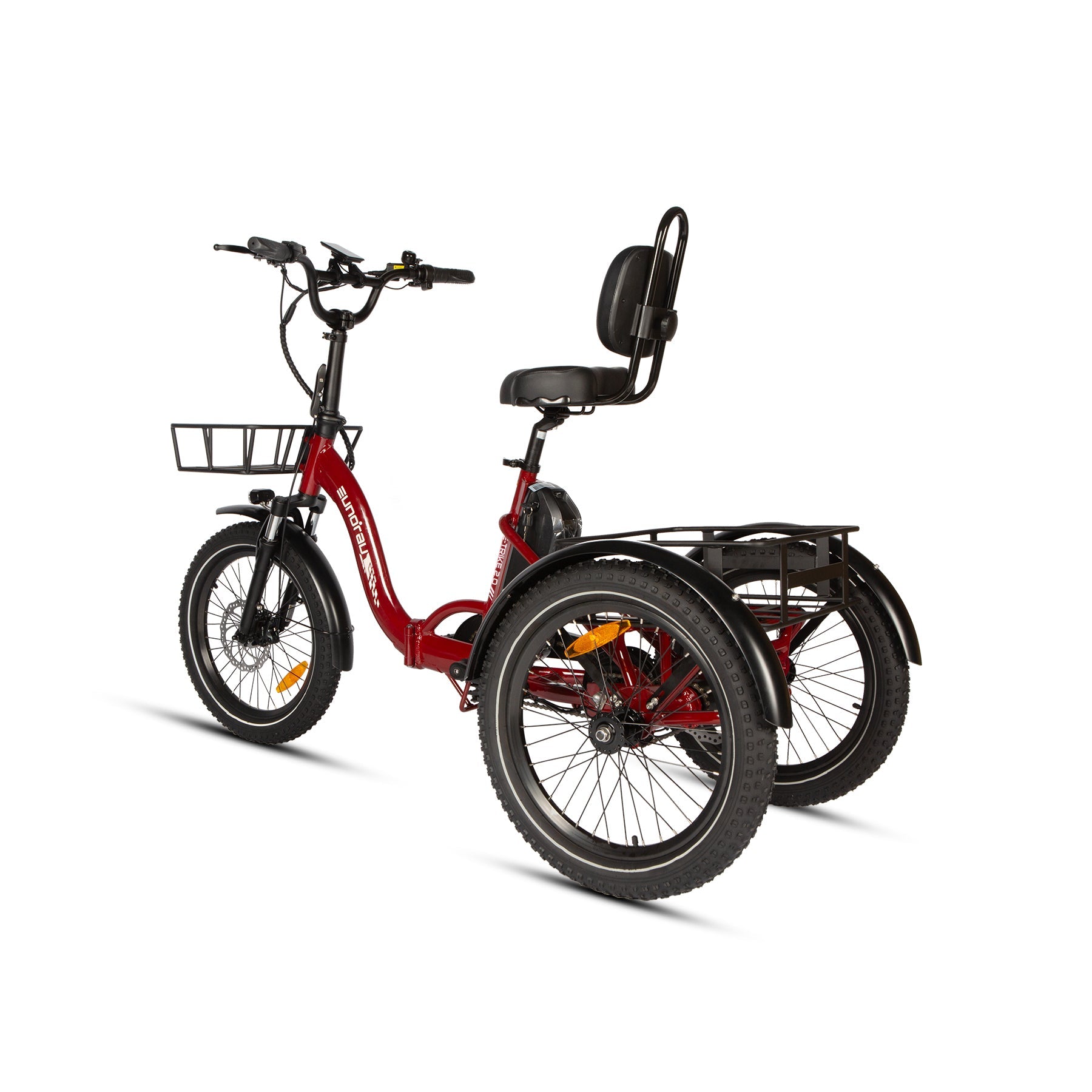

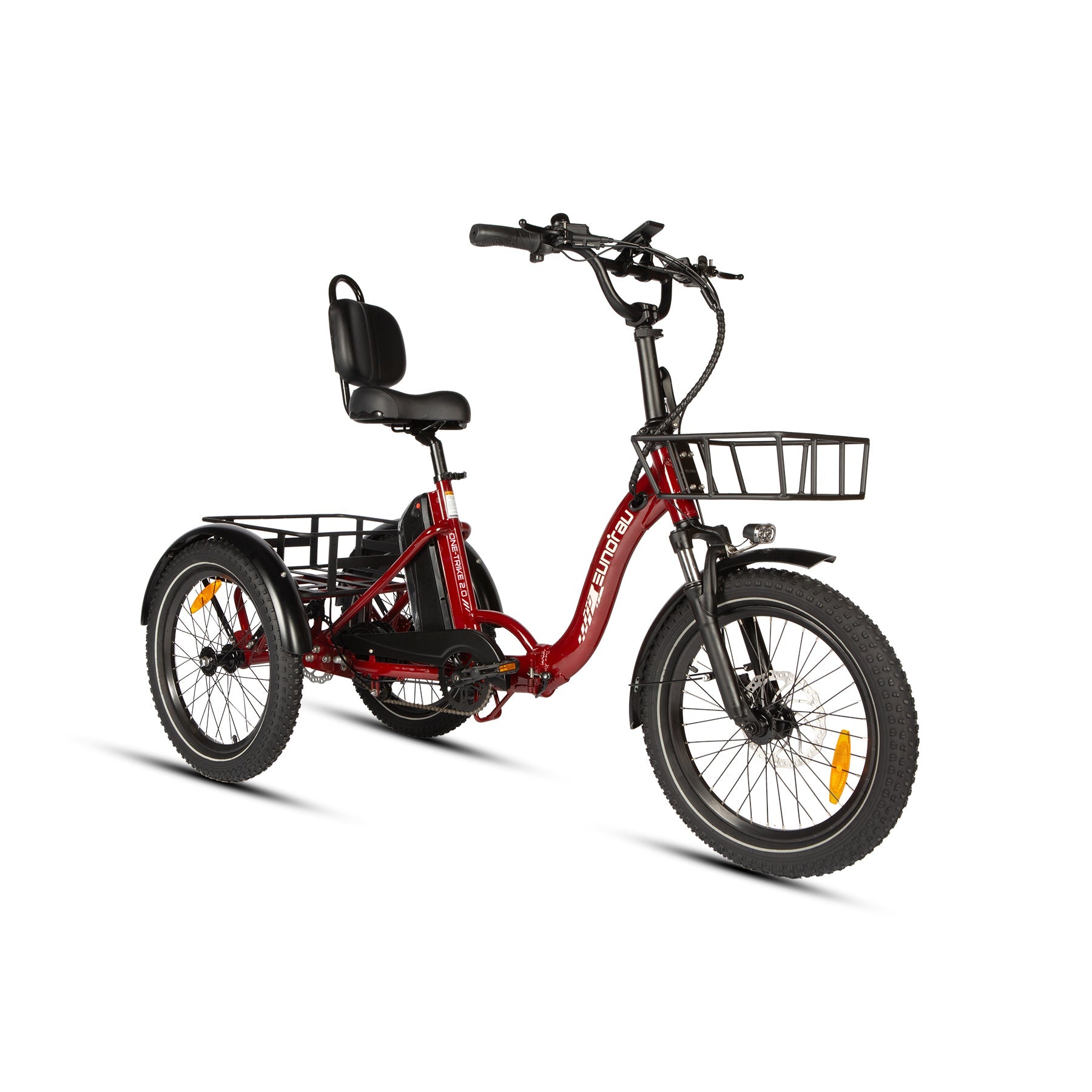

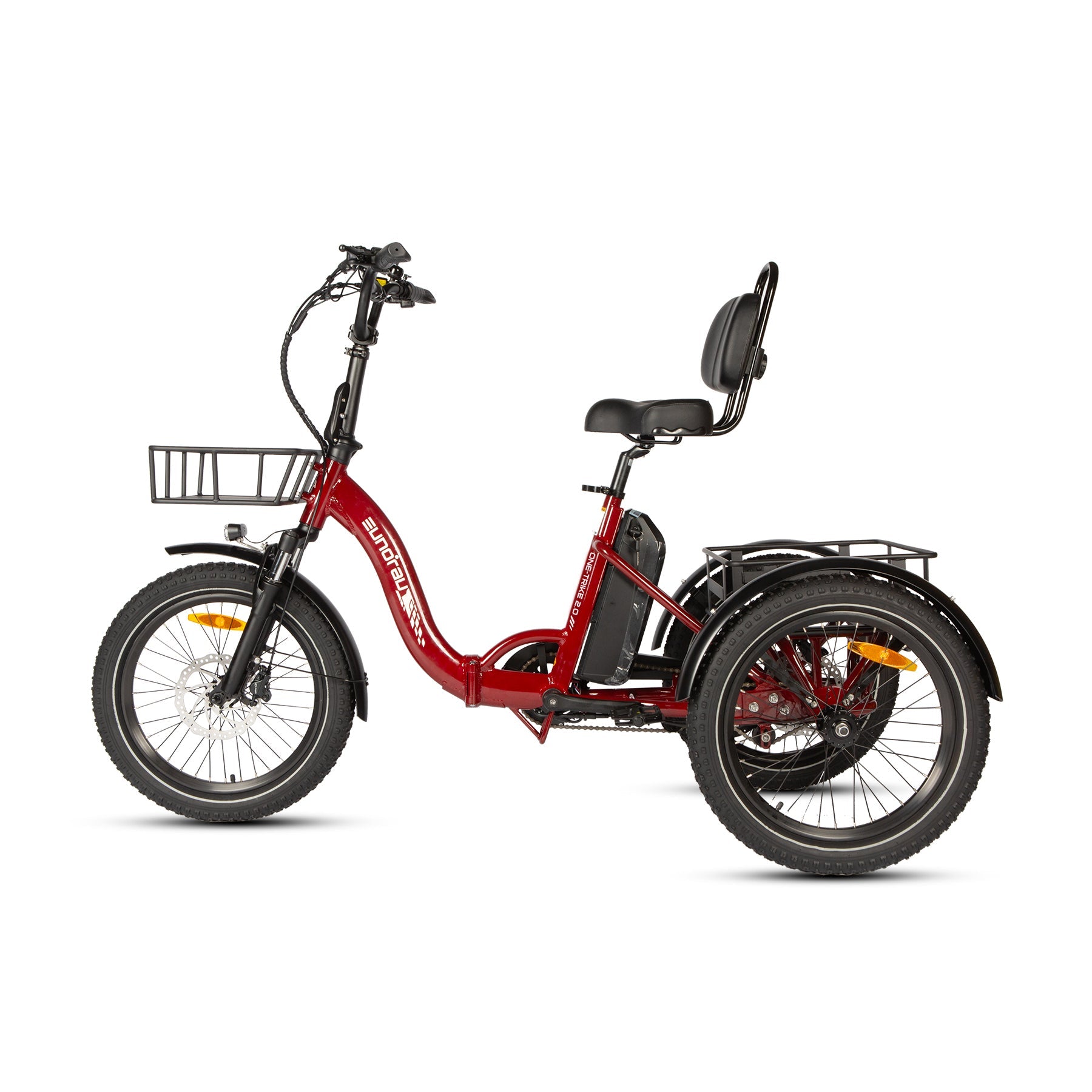

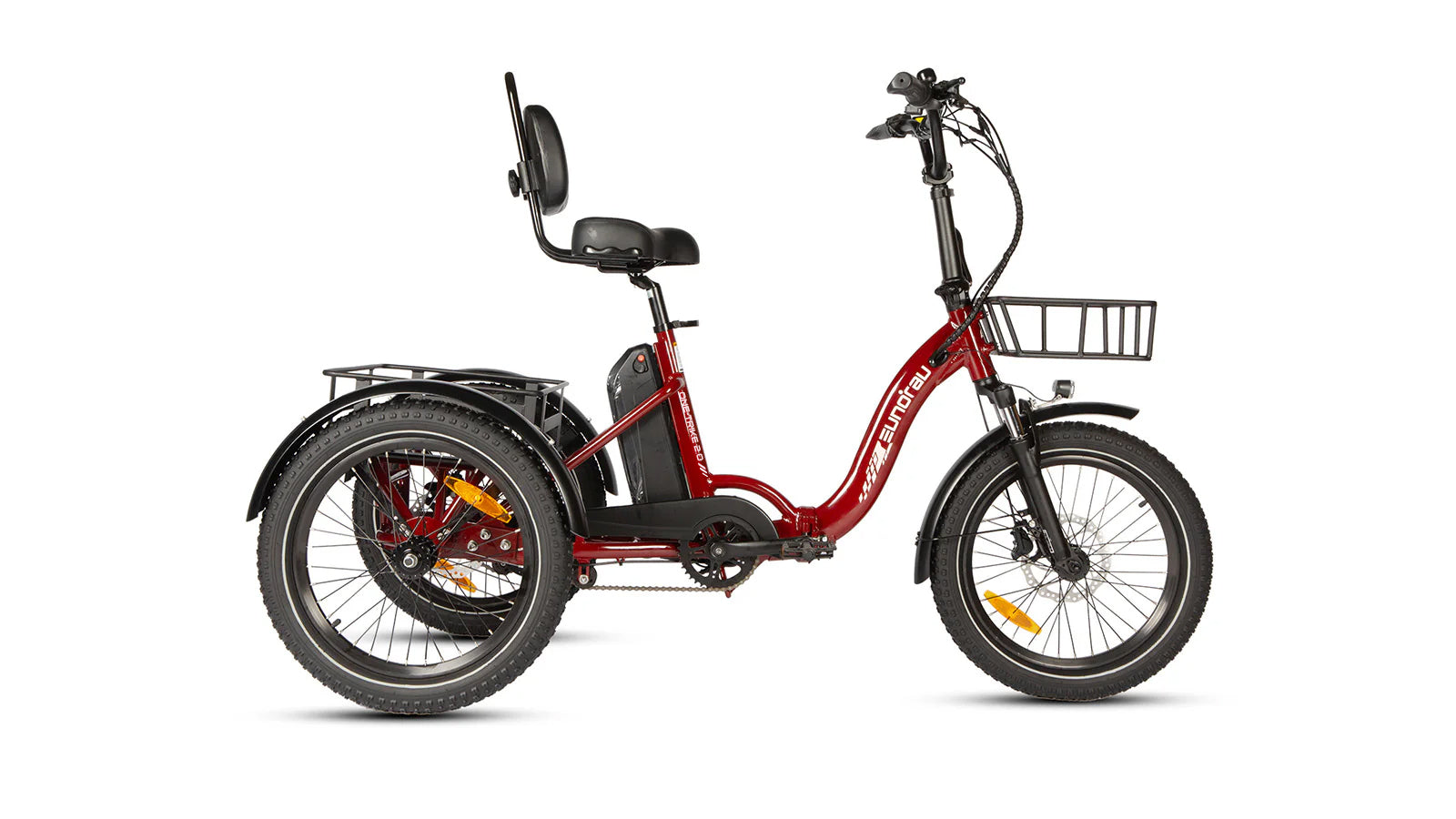

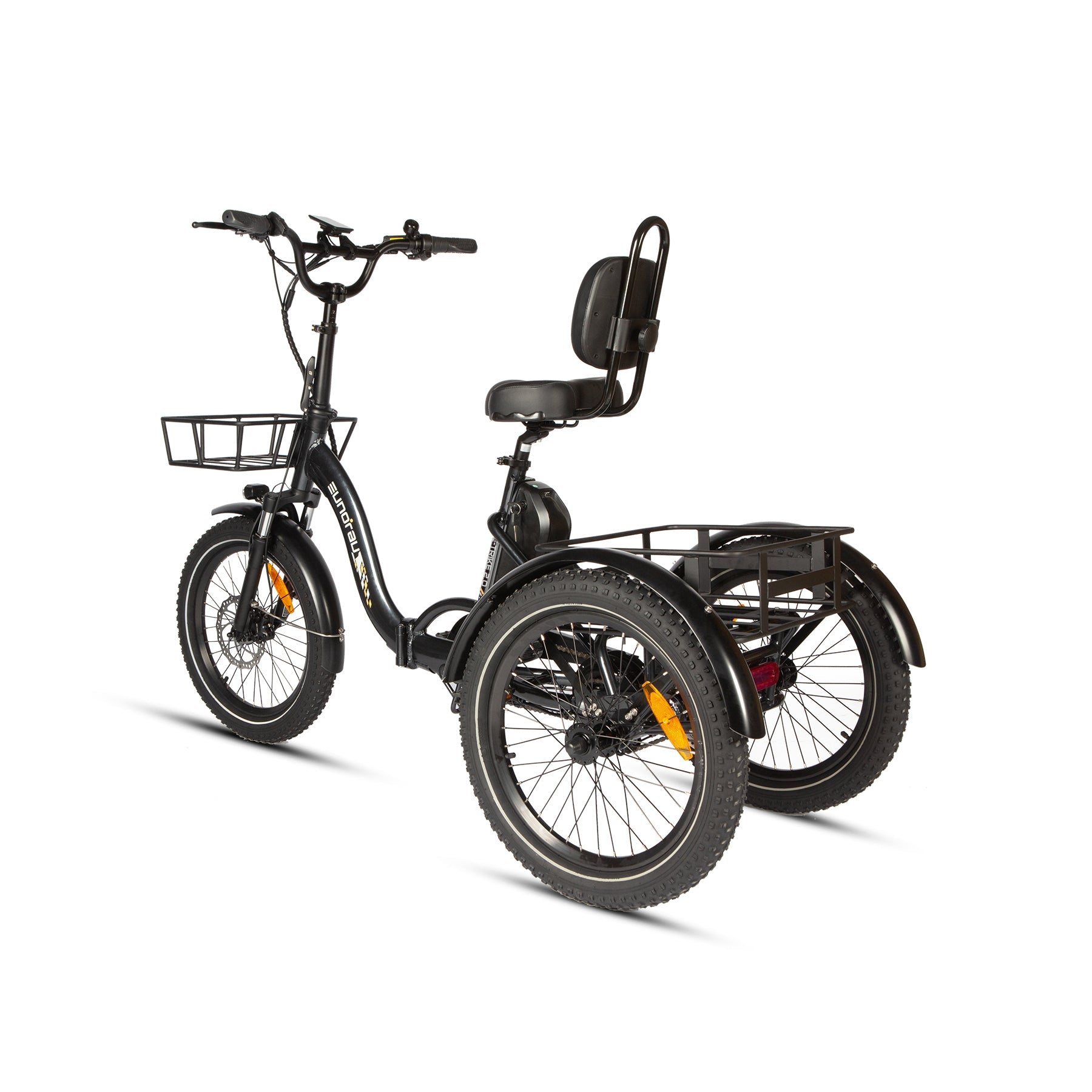

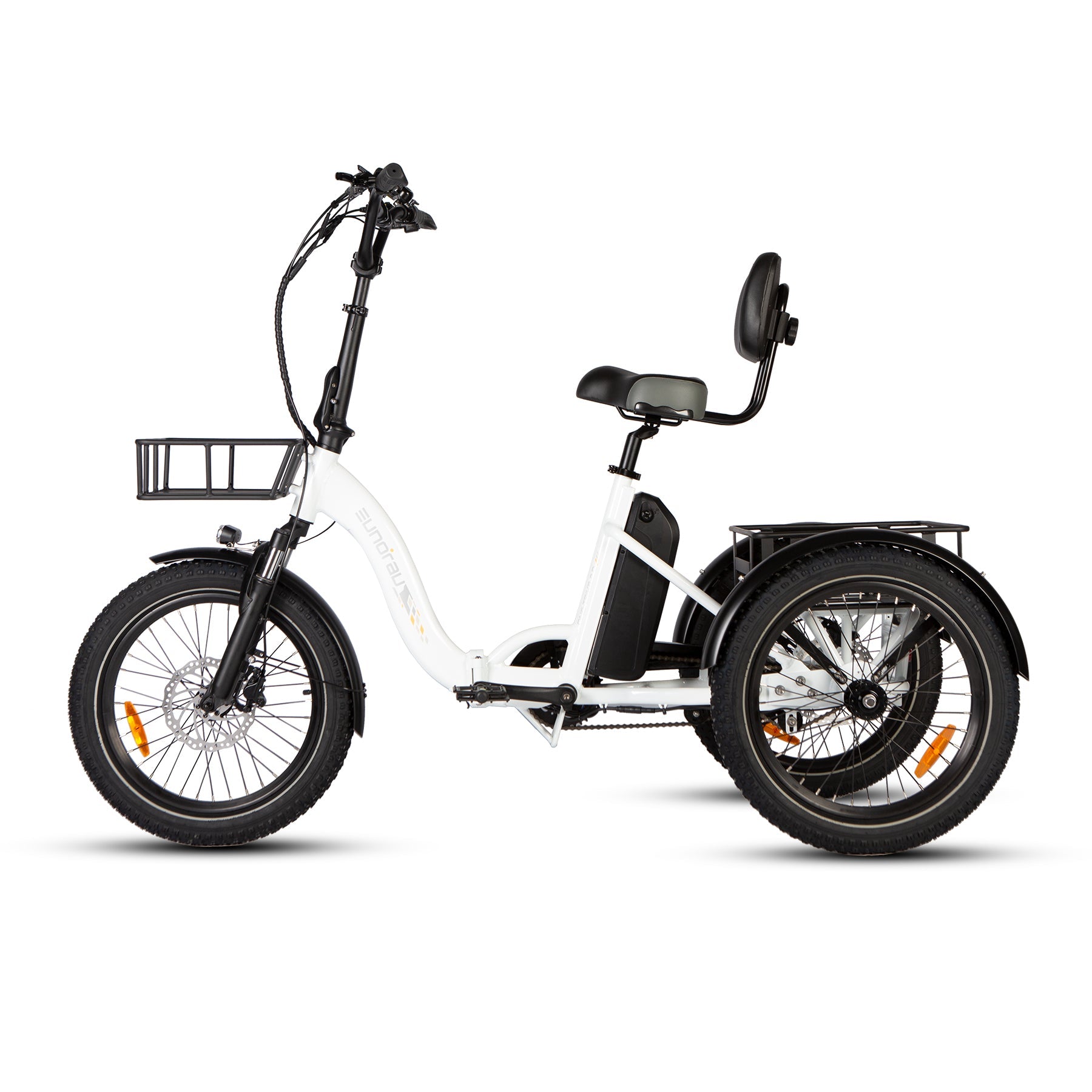

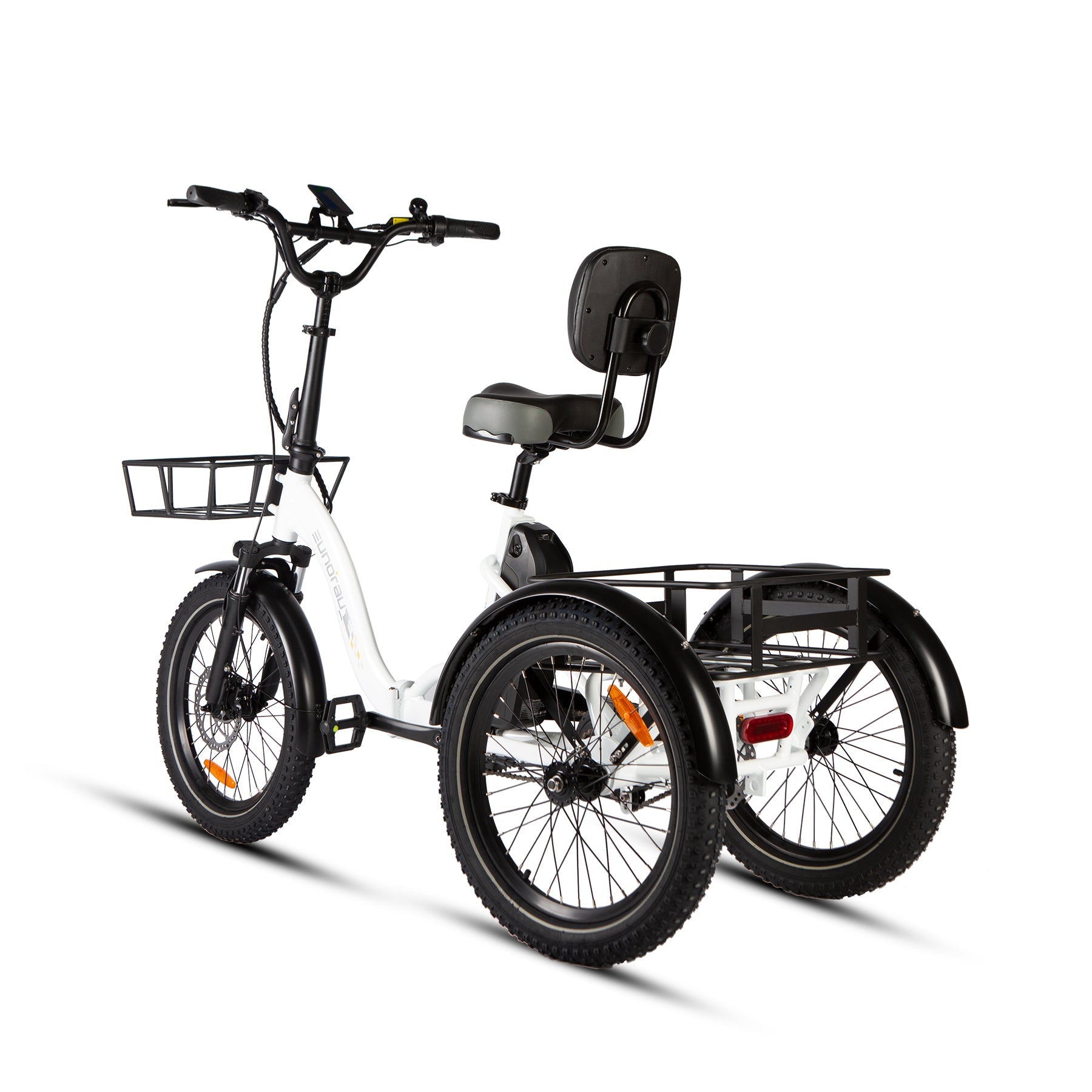

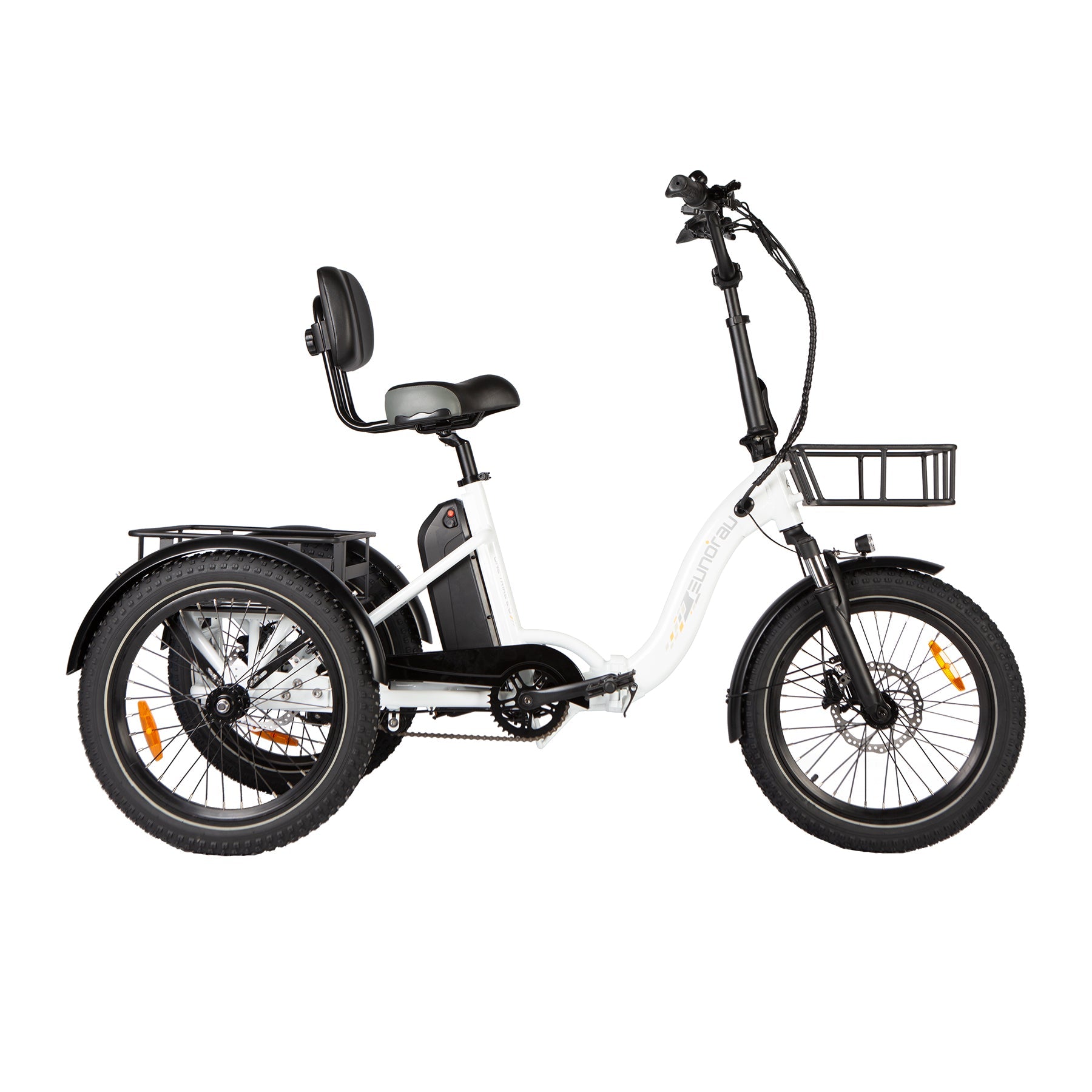

ONE-TRIKE 2.0

Specification

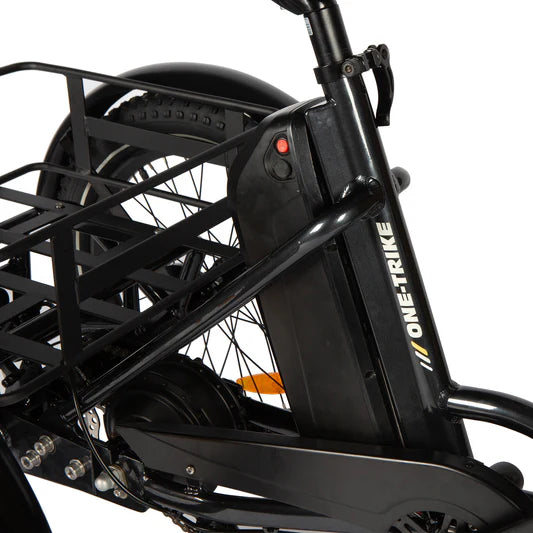

• Battery: 48V/14.5Ah
• Range: 80 KM / 50 Mile

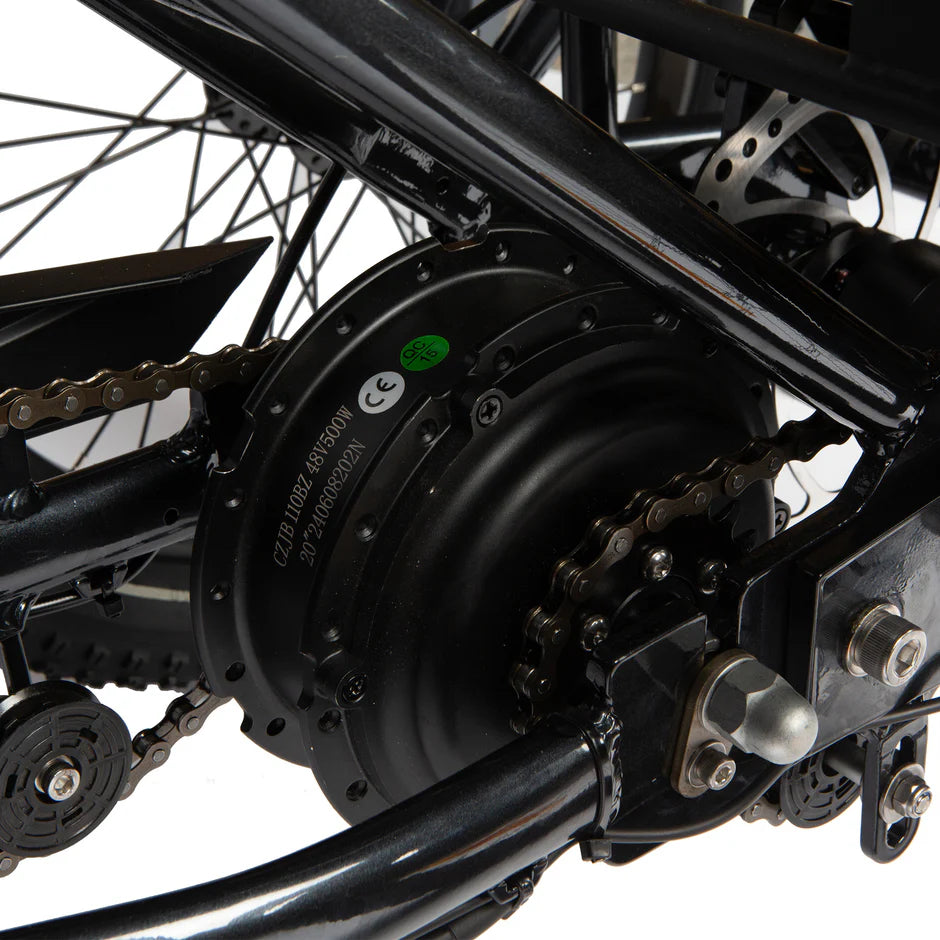

• Motor: 48V250W rear-drive motor with 80 N.m torque
• Total Payload Capacity: 200 KG / 440 LB
• Recommended Rider Heights: 155cm ~ 185cm / 5'2" ~ 6'1"
• Maximum Speed: 25 KPH under speed limited/locked
• Charger: AU standard 2.0 A smart charger
• Controller: 48V / 20A

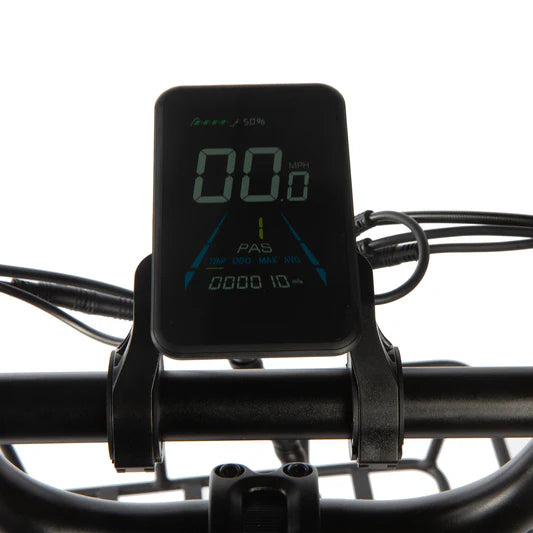

• Display: YL-81F Display, UART protocol
• Weight: 39.00 KG / 85.98 LB
• Pedal Assist Intelligent: 0~5 level pedal assist

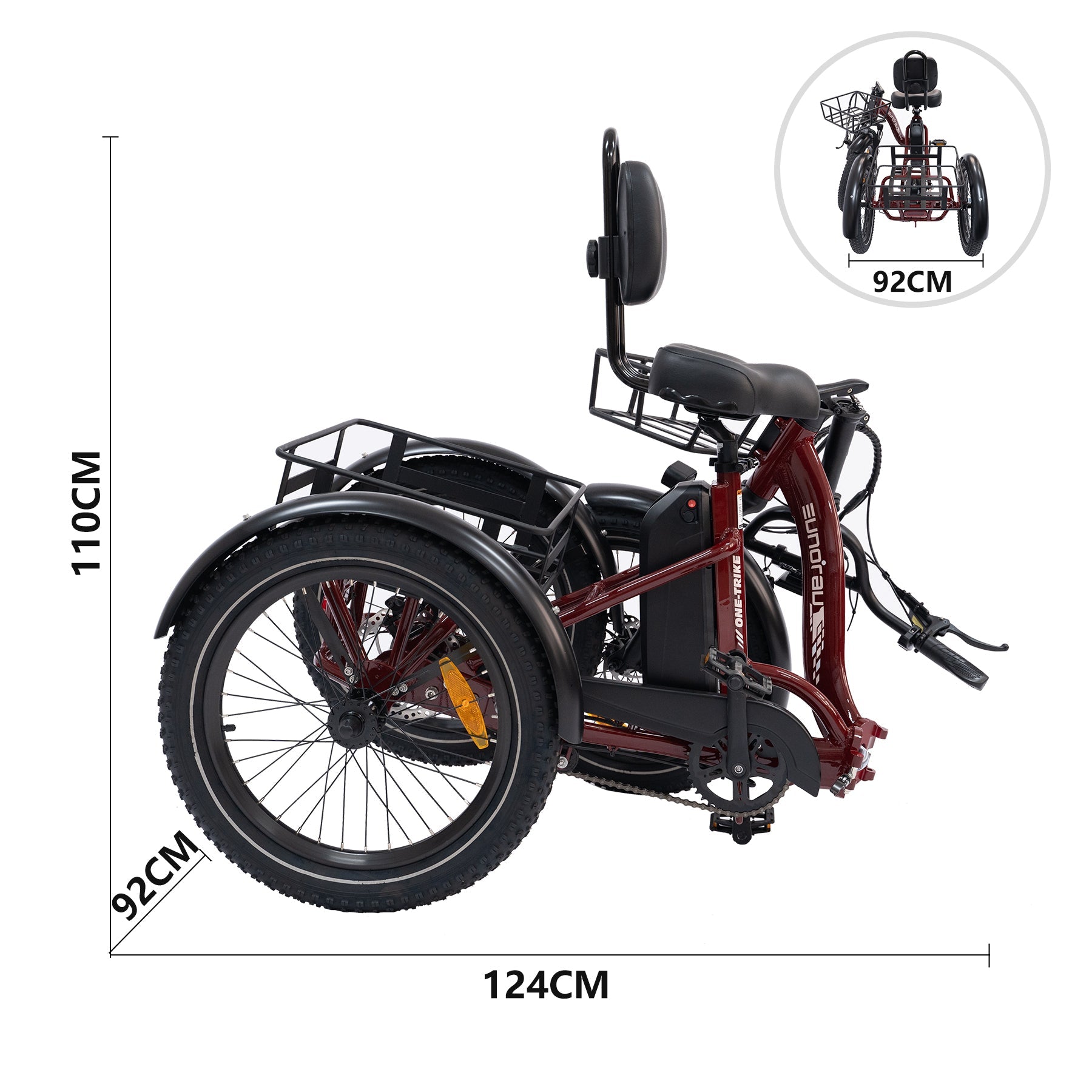

• Box Dimensions: (cm) 103 L x 65 W x 74 H

*Tips:The bike is limited to 25 KPH/15.5 MPH (250W) for on-road legal use.Riders can UNLOCK the bike on the display for off-road use, boosting speed to 32 KPH / 20 MPH and power to 500W.Please check local regulations before unlocking.

Components

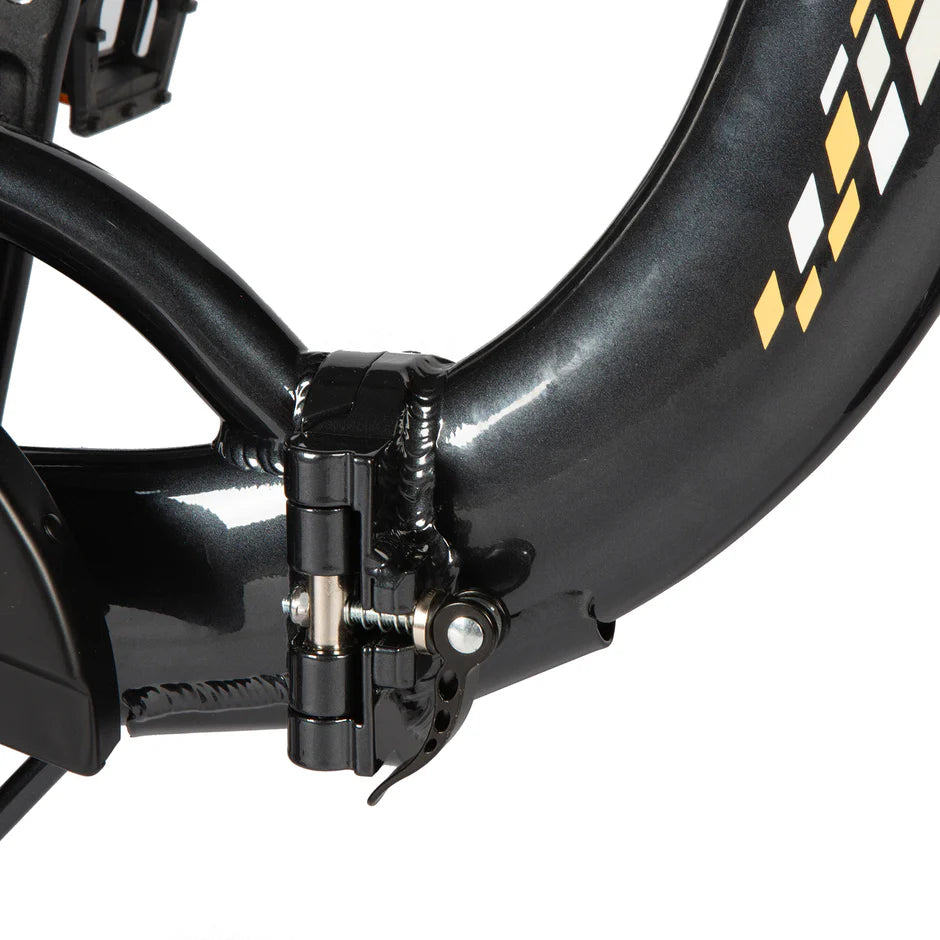

• Frame: 6061 Aluminum alloy

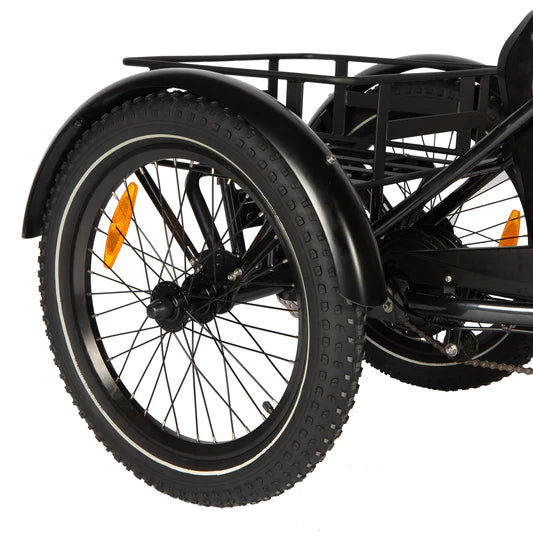

• Tires: 20" x 2.6" Tires
• Handlebar: Adjustable stem for comfort

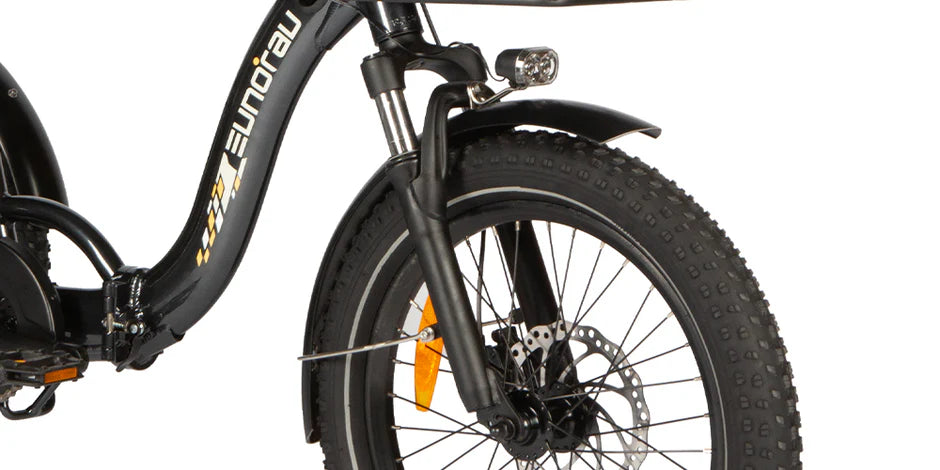

• Fork: Eunorau suspension fork, 40 mm travel
• Stem: Folding, 31.8mm clamp diameter

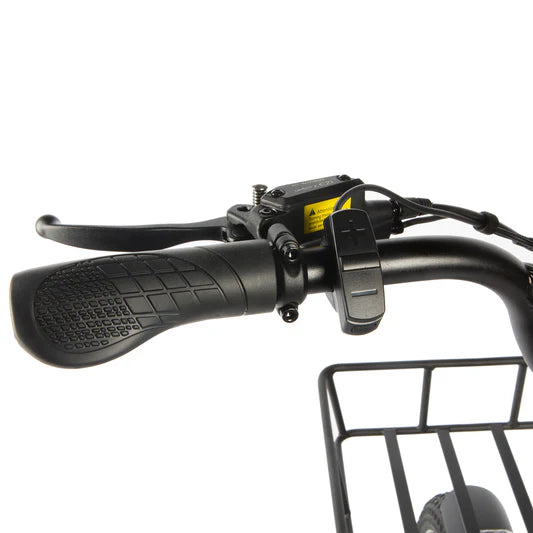

• Brake Lever: Hydraulic disc levers with motor cutoff switch
• Brake Rotor: EUNORAU design 180 mm disc brakes
• Throttle: Half-twist throttle
• Shifter: Single speed
• Freewheel: 18T single-speed freewheel
• Pedal: Aluminum, black
• Crank: 165mm Forged alloy
• Chainring: 38T Chain-wheel crank

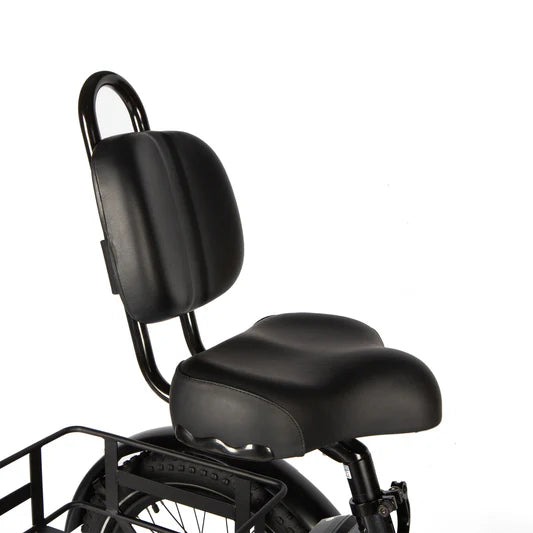

• Saddle: Comfort saddle with backrest, seat-to-ground height 32.3” - 38.6”
• Rear Light: Integrated brake taillight
• Front Light: LED light
• Tool: Included

*Note:On this e-bike, the left lever operates the front brake and the right lever operates the rear brake. In Australia, the standard setup is usually the reverse.Please take a moment to get familiar before riding.
